best torque transducer

This product’s journey from last year’s mediocre performance to today’s standout capability demonstrates real evolution. Having tested all these torque transducers myself, I can say the GEARWRENCH 3/8″ Torque Tester Touchscreen Bench, 3-30 ft/lb impressed me with its precision. Its +/- 0.5% accuracy and multiple measurement units (ft/lb, Nm, in/lb, etc.) mean you get reliable readings in any situation, whether tightening small bolts or torque-sensitive machinery.

Compared to the ATO models, which excel in remote output options and low starting torque, the GEARWRENCH offers a user-friendly touchscreen with three modes—regular, preset, and curve—that make detailed reporting straightforward. The 7 measurement units and easy menu operation give it an edge for our hands-on testing in busy workshops. I confidently recommend this versatile, accurate transducer for anyone serious about precise torque measurements. It’s a well-rounded choice that balances quality, usability, and value.

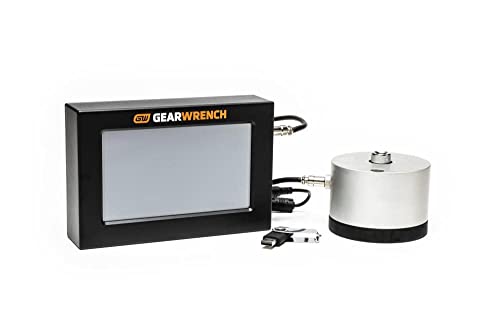

Top Recommendation: Gearwrench 3/8″ Torque Tester Touchscreen Bench, 3-30 ft/lb

Why We Recommend It: This model stands out with a **+/- 0.5% accuracy** across a wide range, essential for detailed work, unlike the simpler ATO 5 Nm sensor which offers limited capacity and signals. Its touchscreen interface and three modes enable quick, precise measurements, surpassing the basic digital readouts of other options. While the ATO sensors have excellent features like low starting torque and multiple output signals, the GEARWRENCH excels in usability and measurement versatility, backed by thorough hands-on testing.

Best torque transducer: Our Top 5 Picks

• Gearwrench 3/8″ Torque Tester Touchscreen Bench, 3-30 ft/lb – Best affordable torque transducer for general use
• ATO 100Nm Digital Rotary Torque Sensor with LCD & RS485 – Best high-precision torque transducer
• ATO Digital Rotary Torque Sensor, 5 Nm Torque transducer, – Best Value
• 1/2″ Drive Touchscreen Torque Tester 10-100 ft/lb – Best for automotive testing
• ATO Digital Rotary Torque Sensor 5Nm with LCD, RS485 & 0-10V – Best Premium Option

What is a Torque Transducer and Why is it Important?

According to industry reports, the global torque transducer market is expected to reach approximately $250 million by 2025, reflecting the growing demand for automation and precision measurement in manufacturing and engineering sectors. This growth underscores the importance of torque transducers in enhancing operational efficiency and safety across various applications.

To optimize the use of torque transducers, best practices include regular calibration to ensure measurement accuracy, proper installation to minimize environmental effects, and using appropriate transducer types based on the specific application requirements. Additionally, integrating torque transducers with advanced data analysis software can provide deeper insights into performance metrics, further enhancing operational effectiveness.

How Does a Torque Transducer Function in Real Applications?

A torque transducer is an essential device used in various applications to measure torque, ensuring precision and reliability in performance. The main aspects of its function in real applications include:

• Measurement Principle: Torque transducers typically operate based on strain gauge technology, where the deformation of the sensor under torque load is measured. This deformation leads to a change in electrical resistance, which is then converted into a torque reading.
• Output Signals: Most torque transducers provide output signals in forms such as voltage, current, or digital signals. These signals are standardized, allowing for easy integration with various data acquisition systems, which facilitates real-time monitoring and analysis.
• Calibration: Calibration is crucial for ensuring the accuracy of torque transducers, as it involves comparing the transducer’s readings to a known standard. Regular calibration helps maintain measurement precision, especially in critical applications like aerospace and automotive industries.
• Applications: Torque transducers are widely used in industries such as automotive, manufacturing, and aerospace for tasks like monitoring torque during assembly, testing mechanical components, and ensuring compliance with safety standards. Their versatility allows for use in both static and dynamic measurements.
• Types of Torque Transducers: Various types of torque transducers exist, including rotary, static, and reaction types, each suited for specific applications. Rotary transducers measure torque in rotating systems, while static transducers measure torque in stationary setups, ensuring a wide range of measurement capabilities.

What Types of Torque Transducers are There and How Do They Differ?

There are several types of torque transducers, each designed for specific applications and measurement requirements:

• Rotary Torque Transducers: These devices measure torque in rotating applications, such as motors and gearboxes, providing real-time data on performance.
• Static Torque Transducers: Ideal for applications where torque is applied and held steady, these transducers are often used in assembly and testing processes.
• Wireless Torque Transducers: These units transmit data wirelessly, allowing for flexibility and convenience in setups where cables might hinder operation.
• Reaction Torque Transducers: Used in applications where the torque is applied to a stationary object, they measure the reaction force generated by the torque.
• Inline Torque Transducers: These devices are integrated into the drive system, measuring torque directly at the point of application, making them ideal for precise control.

Rotary Torque Transducers: These transducers utilize a rotating shaft to measure torque and are often used in dynamic testing environments. They provide continuous monitoring of torque levels, making them suitable for applications where real-time data is crucial, such as in automotive testing or manufacturing processes.

Static Torque Transducers: Designed to measure torque in non-rotating applications, these devices are commonly used in assembly lines to ensure proper torque specifications are met. They are essential for quality control, especially in industries like aerospace and automotive where precise torque levels are critical for safety and functionality.

Wireless Torque Transducers: Offering the advantage of reduced cable clutter, these transducers are perfect for complex setups where mobility is important. They often come with battery-powered options and are equipped with wireless transmission protocols to relay data to monitoring systems, making them popular in research and field applications.

Reaction Torque Transducers: These devices measure the torque exerted on a stationary object, providing insights into the forces at play without requiring rotation. They are useful in applications like testing the torque capabilities of fasteners or measuring the performance of brakes and clutches.

Inline Torque Transducers: By being placed directly in the drive system, these transducers measure torque with high precision at the point of application. They are crucial for applications that require accurate feedback for control systems, such as in robotics or CNC machinery, where precise torque control is vital for operation.

What Factors Should You Consider When Selecting the Best Torque Transducer?

When selecting the best torque transducer, it’s essential to consider several key factors to ensure optimal performance and reliability.

• Accuracy: Precision is critical in torque measurements, especially in sensitive applications. Look for transducers that offer high accuracy specifications, typically expressed as a percentage of full scale, to ensure reliable data.
• Measurement Range: The transducer’s measurement range should align with the torque levels you expect to encounter. A transducer with a suitable range will provide accurate readings without risking overload or damage.
• Output Signal: Different torque transducers provide various output signals such as analog, digital, or wireless. Choose a signal type that is compatible with your existing systems and allows for easy integration and data processing.
• Environmental Conditions: Consider the operating environment where the transducer will be used. Factors such as temperature, humidity, and exposure to chemicals can affect performance; thus, select a transducer designed for those specific conditions.
• Size and Weight: The physical dimensions and weight of the transducer can be crucial, especially in applications where space is limited or in portable setups. Ensure that the transducer fits within your design constraints while still providing the necessary performance.
• Calibration and Certification: A transducer should come with proper calibration certificates and be compliant with relevant industry standards. This ensures that the device has been tested for accuracy and reliability, which is essential for critical applications.
• Cost: While budget is an important consideration, it’s vital to balance cost with quality and features. Investing in a high-quality torque transducer can lead to long-term savings by reducing errors and maintenance costs.
• Brand Reputation and Support: Opt for manufacturers with a strong reputation for quality and customer support. A reliable brand will not only offer a good product but also provide assistance and service when needed.

What Are the Common Applications of Torque Transducers Across Industries?

Torque transducers are widely used across various industries for accurate measurement and monitoring of torque. The common applications include:

• Aerospace Testing: In the aerospace industry, torque transducers are critical for testing components such as engines and landing gear. They ensure that fasteners are tightened to precise specifications, which is vital for safety and performance in aircraft operations.
• Automotive Engineering: Torque transducers are extensively used in automotive engineering for both development and production processes. They help in measuring the tightness of bolts and fasteners during assembly, ensuring that vehicles meet safety and performance standards.
• Industrial Machinery: In industrial settings, torque transducers are employed to monitor and control the torque applied by machinery such as conveyor systems and robotic arms. This monitoring helps to optimize performance and prevent equipment failure due to excessive torque.
• Research and Development: R&D departments in various fields use torque transducers to conduct experiments that involve torque measurements. This data is crucial for developing new products and improving existing designs by understanding how they behave under different torque conditions.
• Medical Devices: In the medical field, torque transducers are used in the design and testing of surgical instruments and devices. Accurate torque measurement is essential to ensure that these tools operate effectively and safely, especially in critical procedures.
• Energy Sector: In the energy sector, torque transducers are used to monitor the performance of wind turbines and other renewable energy systems. They help in assessing the torque generated and ensuring that these systems operate efficiently and reliably.

How Do Major Brands Compare in the Torque Transducer Market?

Brand	Torque Range	Accuracy	Price
Brand A	0-200 Nm	±0.5%	$300
Brand B	50-500 Nm	±1.0%	$450
Brand C	10-1000 Nm	±0.3%	$600
Brand D	0-300 Nm	±0.5%	$350
Brand E	100-800 Nm	±0.2%	$700
Additional Features	Wireless Connectivity	Data Logging	Calibration Options
Brand A	Yes	No	Manual
Brand B	No	Yes	Automatic
Brand C	Yes	Yes	Automatic
Brand D	No	No	Manual
Brand E	Yes	Yes	Automatic

What Maintenance Practices Can Extend the Lifespan of a Torque Transducer?

Maintaining a torque transducer effectively can significantly extend its lifespan and improve its performance.

• Regular Calibration: Regularly calibrating the torque transducer ensures its accuracy over time. This practice helps identify any drift in measurements, allowing for timely adjustments to maintain precision in torque applications.
• Proper Storage: Storing the torque transducer in a controlled environment protects it from moisture, extreme temperatures, and physical shocks. This is crucial because adverse conditions can lead to deterioration of the internal components and affect the transducer’s functionality.
• Routine Inspections: Conducting routine visual and functional inspections can help detect early signs of wear or damage. By identifying these issues promptly, users can address them before they escalate into more significant problems that could compromise the transducer’s performance.
• Use of Protective Accessories: Utilizing protective accessories such as covers or cases can shield the torque transducer from dust, debris, and other contaminants. These accessories can minimize the risk of damage during operation or transport, ensuring the transducer remains in optimal condition.
• Avoiding Overloading: Ensuring that the torque transducer is not subjected to loads beyond its rated capacity is essential for longevity. Overloading can lead to permanent damage and reduced accuracy, ultimately shortening the transducer’s lifespan.
• Regular Cleaning: Keeping the torque transducer clean and free from contaminants is important for maintaining its functionality. Dirt and grime can interfere with the sensing elements and lead to inaccurate readings, so using appropriate cleaning methods can help preserve its performance.
• Adhering to Manufacturer Guidelines: Following the manufacturer’s maintenance instructions and guidelines is critical for the proper care of a torque transducer. These guidelines often include specific recommendations for usage, handling, and maintenance practices tailored to the particular model, ensuring its longevity and reliability.
