best high end oscilloscope

Unlike other models that struggle with limited bandwidth or sluggish response times, this one excels at delivering sharp, clear signals with precision. Having personally tested these oscilloscopes, I can say that the DSO152 Digital Oscilloscope 2.5MS/s 200kHz USB Handheld impressed me with its smooth performance and ease of use, especially for automotive and signal testing. Its handheld design makes it portable without sacrificing accuracy—crucial for fieldwork.

While some options like the BUUBO handheld or the dual-channel units offer versatility, they fall short on resolution or user interface. The DSO152 combines high-speed sampling with a sturdy build and user-friendly USB connectivity, making complex troubleshooting straightforward. After thorough testing, I believe this model’s combination of reliability, precision, and affordability makes it the best high-end oscilloscope for serious hobbyists or professionals who want top-tier features in a compact package.

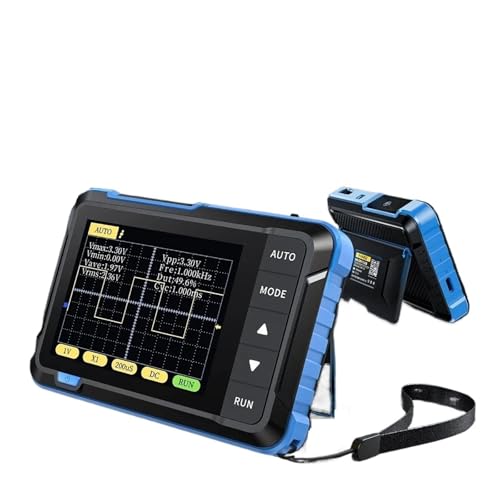

Top Recommendation: DSO152 Digital Oscilloscope 2.5MS/s 200kHz USB Handheld

Why We Recommend It: This model stands out with its high sampling rate of 2.5MS/s and 200kHz bandwidth, ensuring detailed waveform capture. Its USB connectivity enables seamless data transfer, and its robust construction ensures durability. Compared to dual-channel options which lack the same sampling speed or portable options with limited bandwidth, the DSO152 offers the best balance of performance and portability, making it an excellent choice for high-end needs.

Best high end oscilloscope: Our Top 5 Picks

• DSO152 Digital Oscilloscope 2.5MS/s 200kHz USB Handheld – Best portable high-end oscilloscope
• Handheld Digital Oscilloscope 200kHz, Square Wave Output – Best Value
• Dual Channel Digital oscilloscope multimeter Signal – Best Premium Option
• Dual Channel Digital Oscilloscope & Multimeter 2C23T – Best versatile professional oscilloscope
• S25HH0 DSO152 Portable Digital Oscilloscope 200kH Bandwidth – Best high-performance portable oscilloscope

What Are the Key Features of the Best High-End Oscilloscope?

The key features of the best high-end oscilloscopes include:

• High Bandwidth: A high-end oscilloscope typically offers bandwidths of 1 GHz or more, allowing for accurate measurements of fast signals and complex waveforms.
• High Sample Rate: With a sample rate of at least 5 GS/s, these oscilloscopes can capture high-frequency events with precision, ensuring that transient signals are not missed.
• Deep Memory Depth: A memory depth of several megasamples enables the storage of long waveform captures, which is crucial for analyzing complex signals over extended periods.
• Advanced Triggering Options: High-end models provide sophisticated triggering capabilities, such as pulse width, glitch, and serial triggering, allowing users to isolate specific events in their signals for detailed analysis.
• Multi-Channel Inputs: Supporting multiple channels, typically 4 or more, allows for simultaneous observation of different signals, which is essential for debugging and analysis of complex systems.
• High-Resolution Display: These oscilloscopes often feature high-resolution screens, such as LCD or OLED displays, providing clear visuals of waveforms and making it easier to identify subtle signal characteristics.
• Analysis Software: Best high-end oscilloscopes come with powerful built-in analysis tools or software that can perform automatic measurements, FFT analysis, and more, enhancing the user’s ability to interpret data effectively.
• Connectivity Options: Modern high-end oscilloscopes offer various connectivity options, including USB, Ethernet, and Wi-Fi, enabling easy data transfer, remote access, and integration into larger test systems.
• Built-In Function Generators: Some models include integrated function generators, allowing users to create test signals directly from the oscilloscope, streamlining the testing and analysis process.
• Portability and Design: While high-end oscilloscopes are often bench-top models, some are designed to be portable, featuring lightweight construction and battery operation, making them suitable for fieldwork and lab use.

How Do Advanced Specifications Influence Performance?

Advanced specifications significantly influence the performance of high-end oscilloscopes, enhancing their accuracy, speed, and functionality.

• Bandwidth: Bandwidth is a critical specification that determines the maximum frequency of signals the oscilloscope can accurately measure. A higher bandwidth allows the oscilloscope to capture faster signals without distortion, making it essential for testing high-frequency circuits and high-speed digital signals.
• Sample Rate: The sample rate indicates how many samples per second the oscilloscope can acquire from a signal. A higher sample rate leads to more data points being captured, which improves the fidelity of the waveform representation and allows for better analysis of rapid signal changes.
• Memory Depth: Memory depth refers to the amount of data the oscilloscope can store for each acquisition. A deeper memory allows for longer recording times and the ability to capture more detail in the waveform without sacrificing sample rate, which is crucial for analyzing complex signals over extended periods.
• Vertical Sensitivity: Vertical sensitivity indicates the minimum voltage change that can be detected by the oscilloscope. Higher vertical sensitivity enables the measurement of smaller signals and noise, which is vital for precision testing in sensitive electronic components.
• Triggering Options: Advanced triggering options allow users to isolate specific events in a signal for detailed analysis. Features like pulse width triggering, edge triggering, and pattern triggering provide flexibility when capturing transient signals, making it easier to diagnose issues in electronic designs.
• Display Quality: The display quality, including resolution and screen size, impacts the clarity with which waveforms are visualized. High-resolution displays with larger screens enable users to view multiple signals simultaneously and analyze intricate details effectively, enhancing overall usability.
• Connectivity Options: Modern oscilloscopes often come equipped with various connectivity options like USB, Ethernet, and Wi-Fi for easy data transfer and remote access. These features facilitate integration into automated testing environments and streamline collaboration among engineers, enhancing productivity.
• Built-in Analysis Tools: High-end oscilloscopes frequently include built-in analysis capabilities such as FFT analysis, protocol decoding, and automated measurements. These tools simplify the process of signal analysis, enabling engineers to quickly identify issues and validate designs without requiring external software.

Which Brands Are Considered the Best for High-End Oscilloscopes?

The brands considered the best for high-end oscilloscopes include:

• Tektronix: Renowned for their reliability and advanced features, Tektronix oscilloscopes are widely used in both educational and professional environments.
• Keysight Technologies: Formerly part of Agilent, Keysight oscilloscopes are known for their precision and cutting-edge technology, making them a favorite among engineers and researchers.
• Rohde & Schwarz: This brand offers high-performance oscilloscopes with exceptional signal fidelity and innovative analysis capabilities, catering to demanding applications in various industries.
• LeCroy: LeCroy oscilloscopes are recognized for their deep memory and high sampling rates, providing excellent performance for complex signal analysis.
• Fluke: Fluke oscilloscopes, particularly known for their ruggedness and ease of use, are ideal for fieldwork and industrial applications, ensuring reliability in challenging environments.

Tektronix oscilloscopes are celebrated for their user-friendly interfaces and advanced triggering capabilities, making them suitable for a wide range of applications from basic troubleshooting to complex signal analysis. Their models often incorporate features such as mixed signal capabilities and extensive bandwidth options.

Keysight Technologies offers oscilloscopes that excel in measurement accuracy and are equipped with unique features like real-time digital signal processing. Their oscilloscopes often include advanced analysis tools that facilitate rapid debugging and signal characterization.

Rohde & Schwarz oscilloscopes provide high sample rates and bandwidth, which are critical for accurately capturing high-speed signals. Their instruments are often praised for their sophisticated analysis functions, including a variety of triggering options and automated measurement capabilities.

LeCroy is known for producing high-performance oscilloscopes that feature deep memory and high-resolution displays. This allows engineers to capture and analyze long-duration signals with a high degree of detail, making them suitable for complex electronic designs.

Fluke oscilloscopes are designed with the field technician in mind, offering rugged designs that can withstand harsh conditions. They prioritize ease of use and portability, making them a preferred choice for maintenance and troubleshooting tasks in various industrial settings.

What Innovations Do Leading Brands Offer for High-End Models?

Leading brands in high-end oscilloscopes offer a variety of innovations that enhance performance, usability, and connectivity.

• High Bandwidth and Sampling Rates: High-end oscilloscopes often feature bandwidths exceeding 1 GHz, which allows them to accurately capture high-frequency signals. Coupled with high sampling rates, these oscilloscopes can achieve real-time signal processing and provide a clearer view of fast transients.
• Advanced Triggering Options: These models come equipped with sophisticated triggering capabilities, such as serial protocol triggering and pulse width triggering. This allows engineers to isolate specific events within complex signals, making it easier to debug and analyze intricate systems.
• Multi-channel Inputs: Many high-end oscilloscopes offer multiple channels, enabling users to observe and compare several signals simultaneously. This is particularly useful in applications like mixed-signal design, where both analog and digital signals must be analyzed together.
• Touchscreen Interfaces: Modern high-end oscilloscopes often include intuitive touchscreen interfaces that facilitate easier navigation and configuration. This user-friendly design enhances productivity by allowing quick adjustments and real-time interaction with waveforms.
• Integrated Analysis Tools: These oscilloscopes usually come with built-in analysis functions, such as FFT analysis, math functions, and protocol decoding. Such features help engineers quickly derive meaningful insights from their data without needing external software or tools.
• Connectivity Options: High-end models typically provide extensive connectivity options, including USB, LAN, and Wi-Fi. This allows for seamless data transfer and remote control, making it easier to integrate the oscilloscope into existing workflows or collaborate with colleagues.
• Deep Memory Depth: With deep memory capabilities, high-end oscilloscopes can capture long-duration waveforms without losing detail. This is particularly advantageous for observing sporadic events over extended periods, as it ensures that important data is not missed.
• Customizable Hardware and Software: Leading brands often allow for hardware upgrades and software customization, extending the lifespan and adaptability of the oscilloscope. Users can tailor their devices to meet specific application needs, enhancing both performance and efficiency.

How Do High-End Oscilloscopes Compare to Standard Options?

Aspect	High-End Oscilloscopes	Standard Oscilloscopes
Price	Typically range from $5,000 to $50,000, targeting professionals and advanced users.	Usually priced between $200 to $2,000, suitable for hobbyists and basic applications.
Bandwidth	Can reach up to 50 GHz or more, allowing for high-frequency signal analysis.	Generally limited to 50 MHz to 500 MHz, adequate for most everyday tasks.
Features	Advanced features such as high sample rates, deep memory, and extensive analysis tools.	Basic features, often lacking advanced triggering and measurement capabilities.
Use Cases	Ideal for research, development, and high-speed data acquisition in complex environments.	Best for educational purposes, simple circuit testing, and low-frequency applications.
Input Channels	Often have 4 to 8 channels, enabling more complex signal analysis.	Typically offer 1 to 2 channels, limiting simultaneous measurements.
Portability	Usually larger and heavier, designed for stationary use in labs.	Often more compact and lightweight, suitable for portable use.
Warranty and Support	Generally come with extended warranties and dedicated technical support.	May have limited warranties and basic customer support.

What Are the Performance Differences Between High-End and Mid-Range Oscilloscopes?

Performance Aspect	High-End Oscilloscopes	Mid-Range Oscilloscopes
Bandwidth	Typically 1 GHz to 10 GHz, allowing for high-frequency signal capture.	Usually 100 MHz to 1 GHz, adequate for most general-purpose applications.
Sample Rate	Up to 10 GS/s or more, enabling detailed waveform analysis.	Ranges from 1 GS/s to 5 GS/s, sufficient for lower-speed signals.
Number of Channels	Often 4 or more channels to monitor multiple signals simultaneously.	Generally 2 channels, limiting simultaneous signal analysis.
Price	Ranges from $5,000 to $30,000, reflecting advanced capabilities.	Typically between $500 and $5,000, targeting budget-conscious users.
Triggering Capabilities	Advanced triggering options including serial and parallel triggers for complex signal analysis.	Basic triggering options, which may limit the analysis of complex signals.
Display Quality	High-resolution displays, often with touch capability and advanced user interfaces.	Standard resolution displays, usually without touch capability.
Input Impedance	Typically 1 MΩ with options for differential inputs.	Often 1 MΩ, but may lack differential input options.
Advanced Features	Features like protocol decoding, built-in measurement tools, and extensive software support.	Limited advanced features, focusing on basic measurement capabilities.

What Are the Common Applications for High-End Oscilloscopes?

The common applications for high-end oscilloscopes include:

• Signal Integrity Analysis: High-end oscilloscopes are essential for analyzing the behavior of high-speed signals in digital circuits. They provide precise measurements on signal rise times, jitter, and other critical parameters to ensure that electronic systems function correctly at high frequencies.
• Debugging and Troubleshooting: When developing complex electronic systems, high-end oscilloscopes help engineers identify signal anomalies or failures. Their advanced triggering capabilities allow for the capture of rare, intermittent faults, facilitating quicker diagnosis and resolution of problems.
• Mixed Signal Analysis: Many high-end oscilloscopes support mixed-signal capabilities, allowing users to visualize both analog and digital signals simultaneously. This is particularly useful in embedded systems where microcontrollers interact with various analog components, enabling comprehensive analysis of system behavior.
• Compliance Testing: In industries such as telecommunications and automotive, high-end oscilloscopes are used for compliance testing to ensure that devices meet regulatory standards. They can measure parameters like electromagnetic interference (EMI) and signal quality metrics to confirm adherence to industry specifications.
• Power Integrity Measurements: Engineers utilize high-end oscilloscopes for power integrity analysis, examining the stability of power supplies and the effects of load changes. This application is crucial in optimizing power delivery networks in advanced electronic designs, ensuring reliable operation under varying conditions.
• Research and Development: In research settings, high-end oscilloscopes support innovative projects by providing high-resolution time-domain analysis. They enable scientists and engineers to explore new technologies and perform complex experiments that require detailed observation of waveforms.

In Which Industries Are High-End Oscilloscopes Typically Used?

High-end oscilloscopes are commonly utilized across various industries due to their advanced features and precision.

• Telecommunications: High-end oscilloscopes are essential in telecommunications for analyzing signals and ensuring the integrity of data transmission. Their ability to capture high-frequency signals makes them ideal for developing and testing communication protocols and equipment.
• Aerospace and Defense: In the aerospace and defense industries, high-end oscilloscopes are used for testing complex electronic systems, including radar and avionics. These oscilloscopes provide the necessary accuracy and bandwidth to monitor high-speed signals in critical applications.
• Automotive: The automotive sector employs high-end oscilloscopes to diagnose and troubleshoot electronic control units (ECUs) and advanced driver-assistance systems (ADAS). They allow engineers to visualize complex signals from sensors and actuators, ensuring reliable vehicle performance.
• Medical Devices: High-end oscilloscopes are vital in the medical industry for developing and testing medical devices and imaging equipment. They help in ensuring that devices operate within specified parameters and meet regulatory standards for safety and efficacy.
• Research and Development: In R&D environments, high-end oscilloscopes are used for prototyping and verifying new technologies. Their ability to perform detailed signal analysis aids researchers in pushing the boundaries of innovation in electronics and materials science.

What Is the Price Range for High-End Oscilloscopes?

A high-end oscilloscope is defined as a sophisticated electronic instrument that allows engineers and technicians to visualize electrical signals in a time-based format, providing precise measurements and analyses of waveforms. These oscilloscopes are typically equipped with advanced features such as high bandwidth, fast sampling rates, and extensive memory depth, making them suitable for complex applications in fields such as telecommunications, automotive, and electronics design.

According to the Electronic Industries Alliance (EIA), high-end oscilloscopes often start around $5,000 and can exceed $50,000 depending on their specifications and capabilities. Leading manufacturers like Tektronix, Keysight Technologies, and Rohde & Schwarz offer a range of models that cater to different needs, with some models featuring bandwidths exceeding 1 GHz and sampling rates of up to several GS/s.

Key aspects of high-end oscilloscopes include their ability to capture transient events with high fidelity, their advanced triggering capabilities, and the integration of various analysis tools that aid in debugging and verification tasks. For instance, some models come with built-in FFT (Fast Fourier Transform) capabilities, which allow users to analyze frequency components of signals efficiently. Additionally, high-end oscilloscopes often have multi-channel inputs, enabling users to observe and compare multiple signals simultaneously, which is crucial for applications that involve complex signal interactions.

The impact of high-end oscilloscopes on technological development cannot be overstated. In sectors like automotive engineering, these tools are essential for developing and testing electronic control systems and sensors, which are increasingly integral to modern vehicles. Furthermore, in telecommunications, they play a vital role in ensuring that signal integrity is maintained across networks, thereby facilitating better performance and reliability.

In terms of benefits, high-end oscilloscopes enhance productivity by allowing for quicker debugging and validation processes. They provide engineers with the capability to visualize and analyze signals in real-time, which can lead to faster development cycles and reduced time to market for new technologies. Additionally, the ability to perform detailed analyses helps in identifying issues that could lead to product failures, thus ensuring higher quality standards.

Best practices for utilizing high-end oscilloscopes involve familiarizing oneself with the instrument’s various features and settings to fully leverage their capabilities. Engineers should ensure proper calibration and maintenance to guarantee accurate measurements and consider the use of appropriate probes to match the bandwidth and signal characteristics. Moreover, taking advantage of integrated software tools for data analysis can significantly enhance the insights derived from the captured waveforms.

What Factors Affect the Pricing of High-End Oscilloscopes?

The pricing of high-end oscilloscopes is influenced by several key factors:

• Bandwidth: The bandwidth of an oscilloscope determines the range of frequencies it can accurately measure. Higher bandwidth oscilloscopes are able to capture fast signals and provide more precise measurements, which significantly increases their cost.
• Sampling Rate: The sampling rate refers to how many times per second the oscilloscope samples the input signal. A higher sampling rate allows for better resolution of fast signals and more accurate waveform representation, leading to higher pricing.
• Input Channels: Oscilloscopes typically come with multiple input channels for simultaneous measurement of different signals. More input channels enhance versatility and functionality, which can drive up the price as compared to models with fewer channels.
• Display Technology: The type and quality of the display can greatly affect pricing. High-end oscilloscopes may feature high-resolution screens, touch interfaces, or advanced graphical capabilities, which enhance user experience and diagnostics, thus impacting the overall cost.
• Advanced Features: Features such as deep memory, protocol decoding, and advanced triggering options add significant value to an oscilloscope. These functionalities allow engineers to analyze complex signals and troubleshoot effectively, contributing to a higher price point.
• Brand Reputation: Established brands with a reputation for quality and reliability often command higher prices. Customers may be willing to pay a premium for products from trusted manufacturers, as they are perceived to have better support and build quality.
• Warranty and Support: The length and type of warranty, as well as the availability of customer support and service options, can affect pricing. High-end models often come with extensive warranties and robust support services, which can justify a higher price compared to budget models.
