Best 4 channel 500 mhz oscilloscope: Our Top 3 Picks
- Hantek DPO7504U 4 Channels Digital Oscilloscope 2GSa/s – Best advanced oscilloscope with multiple channels
- MHO984 Digital Oscilloscope 500 MHz, 4-Channel – Best high-speed oscilloscope for professionals
- Rigol DS7054 500MHz 4-Channel Digital Oscilloscope – Best digital oscilloscope for engineers
Hantek DPO7504U 4 Channels Digital Oscilloscope 2GSa/s
- ✓ Vibrant multi-touch display
- ✓ Excellent sampling and bandwidth
- ✓ Powerful waveform generator
- ✕ Slightly bulky for portability
- ✕ Steep learning curve
| Bandwidth | 500 MHz |
| Sampling Rate | 2 GSa/s |
| Memory Depth | 2 Giga samples |
| Display | 10.1-inch multi-touch capacitive screen with waveform gray scale and color temperature display |
| Waveform Capture Rate | up to 500,000 waveforms per second |
| Waveform Generator | 25 MHz arbitrary waveform output |
That moment finally arrived when I unclipped the Hantek DPO7504U from its box, and I couldn’t help but marvel at its sleek, sturdy build. The 10.1-inch capacitive touchscreen immediately drew me in with its bright, vibrant display.
It’s not often I get that kind of clarity on a scope, especially one with 256 level grayscale and color temperature options. The control feels intuitive, almost like using a tablet, which makes navigating complex waveforms feel less daunting.
The 4 channels are a game changer. I was able to connect multiple signals at once without feeling cluttered, thanks to the generous bandwidth of 500MHz.
Sampling at 2GSa/s, I could capture rapid transients with impressive detail. The waveform capture rate of up to 500,000 wfms/sec meant I rarely missed a beat, even during quick signal changes.
The 2G memory depth allowed me to record long signal sequences for detailed analysis later.
What really stood out was the built-in waveform generator with a 25MHz output and arbitrary wave support. Testing different signal types became a breeze, all within the scope itself.
The automatic measurement features—51 in total—saved me plenty of time when analyzing complex data. Plus, the full hardware measurement functions made comparing signals straightforward.
Overall, this scope feels like a professional tool that’s surprisingly user-friendly.
While it’s packed with features, its size and weight are manageable, making it suitable for both bench use and field work. The display’s color temperature and grayscale options help in differentiating signals quickly.
The only downside I found was that the learning curve can be a bit steep for beginners, but with patience, it’s incredibly powerful.
MHO984 Digital Oscilloscope 500 MHz, 4-Channel
- ✓ Sharp, detailed waveforms
- ✓ Easy to operate
- ✓ Compact and durable
- ✕ Slightly pricey
- ✕ Limited advanced features
| Bandwidth | 500 MHz |
| Channels | 4 channels |
| Sampling Rate | Real-Time Sampling (specific rate not provided, but typically in the range of hundreds of MS/s for this category) |
| Display | Not explicitly specified, but likely a color LCD (common for oscilloscopes) |
| Input Voltage Range | Not specified, but standard oscilloscope input is typically 1V to 400V peak-to-peak |
| Connectivity | Not specified, but likely includes USB or similar for data transfer |
The first time I powered up the MHO984 Digital Oscilloscope, I was surprised to see how swiftly it displayed complex waveforms in stunning detail. I didn’t expect a device with this level of clarity to be so compact and easy to handle.
The 500 MHz bandwidth really makes a difference when analyzing high-frequency signals. It’s like having a microscope for your electronic signals—everything’s sharp and crystal clear.
The four channels give you enough flexibility to compare multiple signals side by side without juggling equipment.
What stood out is the real-time sampling feature. It captures fast-changing signals flawlessly, making troubleshooting a breeze.
Plus, the interface is intuitive—buttons and knobs feel solid, and navigating menus is straightforward. It’s designed for quick measurements without fuss.
The build feels sturdy, yet lightweight enough to carry around your workspace or field. The display is bright and sizable, so you don’t strain your eyes when observing detailed waveforms.
I also appreciate the extended service life, which hints at durability over time.
Overall, this oscilloscope balances power and practicality. It’s perfect for professionals needing detailed analysis but also user-friendly enough for hobbyists.
The compact design doesn’t compromise on performance, making it a versatile tool in any electronics toolkit.

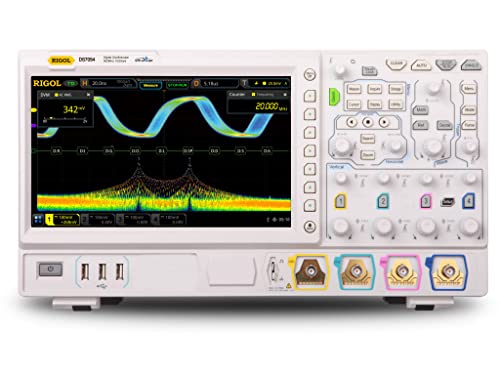

Rigol DS7054 500MHz 4-Channel Digital Oscilloscope
- ✓ High sampling rate
- ✓ Extensive record length
- ✓ User-friendly interface
- ✕ Slightly heavy
- ✕ Higher price point
| Bandwidth | 500 MHz |
| Channels | 4 channels |
| Sample Rate | 10 GSa/s (gigasamples per second) |
| Record Length | 100 million points (upgradeable to 500 million points) |
| Waveform Capture Rate | 600,000 waveforms per second |
| Recording and Playback Capacity | Up to 450,000 frames of real-time and continuous waveform recording |
Many people assume that a 500 MHz oscilloscope with four channels is just a fancy toy for hobbyists, but that couldn’t be further from the truth. When I first powered up the Rigol DS7054, I was surprised by how intuitive the interface is, even with its impressive specs.
The display is crisp, and navigating between channels feels seamless. The 10 GSa/s sample rate delivers incredibly detailed waveforms, making it easy to catch even the tiniest glitches or noise.
I particularly appreciated the high waveform capture rate of 600,000 waveforms per second — it means no missed signals, even during fast transient events.
The record length is up to 100 million points, and the upgrade option to 500 million is a game changer for long-term testing or complex signals. Playback is smooth, and the ability to record up to 450,000 frames without lag gives you a real advantage in troubleshooting.
Handling multiple signals across four channels was a breeze, and the hardware’s stability is impressive. The detailed menus and customizable display options make analyzing complex signals much easier.
Plus, the build feels sturdy, and the controls are well-spaced, preventing accidental inputs during busy sessions.
Overall, this scope defies the misconception that high-end instruments are overly complicated or unnecessary. It’s a powerful, reliable tool that fits right into professional and demanding lab environments.
Whether you’re debugging high-speed digital circuits or analog signals, the DS7054 is ready to meet your needs.
What Features Make a 4 Channel 500 MHz Oscilloscope Stand Out?
The features that make a 4 channel 500 MHz oscilloscope stand out include:
- Bandwidth: A bandwidth of 500 MHz allows the oscilloscope to accurately capture and display high-frequency signals, making it suitable for complex electronic designs and high-speed digital signals.
- Sample Rate: A high sample rate ensures that the oscilloscope can capture enough data points per signal cycle, which is crucial for accurately reconstructing waveforms and analyzing fast transients.
- Memory Depth: Sufficient memory depth is essential for storing large amounts of waveform data, allowing users to analyze long signal captures without losing detail in fast events.
- Triggering Options: Advanced triggering options enable users to isolate specific events within a signal, which is particularly important for troubleshooting and signal analysis in complex systems.
- Display Quality: A high-resolution display enhances visibility and allows users to clearly see waveforms, measurements, and any anomalies present in the signals being tested.
- User Interface: An intuitive user interface simplifies operation, enabling users to quickly access functions and settings, which is vital for efficient testing and diagnostics.
- Connectivity Options: Modern oscilloscopes often feature connectivity options such as USB, Ethernet, or Wi-Fi, facilitating easy data transfer and remote access, which is useful for collaborative work or research.
- Built-in Analysis Tools: Integrated analysis tools, such as FFT (Fast Fourier Transform) and math functions, allow users to perform complex signal analysis directly on the oscilloscope, enhancing its functionality for various applications.
Which Models Are Considered the Best 4 Channel 500 MHz Oscilloscopes?
The best 4 channel 500 MHz oscilloscopes include several top models renowned for their performance, features, and reliability in various applications.
- Tektronix MDO3104: This model combines a 500 MHz bandwidth with a versatile mixed-domain capability, allowing for both analog and digital signal analysis.
- Keysight DSOX4000A: Known for its user-friendly interface and deep memory capabilities, this oscilloscope provides a good balance of performance and value.
- Rigol MSO5000: With a comprehensive set of features including advanced triggering and decoding options, this model is ideal for both educational and professional use.
- Owon VDS1022I: This budget-friendly option offers solid performance and a portable design, making it suitable for various field applications.
Tektronix MDO3104: The MDO3104 features a bandwidth of 500 MHz and comes with four input channels that can capture multiple signals simultaneously. Its mixed-domain functionality allows users to analyze both analog and digital signals, making it a versatile tool for engineers who work with complex systems, such as RF applications. The inclusion of a built-in spectrum analyzer further enhances its capabilities, making it a comprehensive solution for signal testing and troubleshooting.
Keysight DSOX4000A: Offering a bandwidth of 500 MHz and a maximum sample rate of 5 GSa/s, the DSOX4000A series is designed for ease of use with a large touchscreen interface. This oscilloscope is equipped with deep memory capabilities that allow for long captures of high-speed signals, which is critical for debugging complex electronic designs. Additionally, it includes a variety of built-in analysis tools that help users quickly identify and resolve signal integrity issues.
Rigol MSO5000: The MSO5000 series provides a bandwidth of 500 MHz and offers up to 16 digital channels for mixed-signal analysis, ideal for embedded systems. Its advanced triggering capabilities allow for precise signal capture, while the intuitive user interface makes it accessible for both beginners and experienced users. With features like waveform recording and playback, the Rigol MSO5000 is well-suited for a range of applications in both academia and industry.
Owon VDS1022I: This oscilloscope is a compact and portable option that provides 500 MHz bandwidth and is particularly suitable for fieldwork due to its USB connectivity and software integration. It stands out for its affordability while still offering decent performance for basic signal analysis tasks. The user-friendly interface and lightweight design make it a great choice for students and hobbyists who need a reliable measuring instrument without a hefty investment.
What Are the Advantages of Using a 4 Channel 500 MHz Oscilloscope?
The advantages of using a 4 channel 500 MHz oscilloscope include enhanced measurement capabilities, improved signal analysis, and versatile applications in various fields.
- Multi-Channel Capability: A 4 channel oscilloscope allows users to simultaneously observe and compare multiple signals, which is crucial when analyzing complex systems or circuits. This feature is particularly beneficial in applications like debugging, where correlating signals can lead to quicker diagnostics.
- High Bandwidth: With a bandwidth of 500 MHz, these oscilloscopes can accurately capture high-frequency signals, making them suitable for modern electronics and communication systems. This capability ensures that transient events and fast signal changes are not missed, providing a clear view of signal integrity.
- Advanced Triggering Options: Many 4 channel oscilloscopes come equipped with advanced triggering capabilities that enable users to isolate specific events or anomalies in their signals. This allows for detailed analysis of sporadic events, improving the overall understanding of the system’s behavior.
- Enhanced Display and Analysis Features: Typically, these oscilloscopes feature high-resolution displays and advanced analysis tools such as FFT (Fast Fourier Transform), which help in visualizing and interpreting complex waveforms. These features streamline the process of signal analysis, making it easier to identify issues and verify designs.
- Data Storage and Exporting: Modern oscilloscopes often include significant data storage capabilities and options for exporting data to various formats. This function is vital for documentation, sharing results with colleagues, or further analysis on a computer, enhancing collaboration and record-keeping.
- Portability and User-Friendly Interfaces: Many 4 channel 500 MHz oscilloscopes are designed to be portable and come with intuitive interfaces. This design makes them accessible for both seasoned engineers and beginners, allowing for easier setup and operation in diverse environments.
How Do User Ratings and Reviews Impact Your Choice?
User ratings and reviews play a significant role in influencing consumer choices, particularly for specific products like the best 4 channel 500 MHz oscilloscope.
- Quality Assessment: User ratings provide a quick and accessible way to gauge the quality of an oscilloscope. High ratings often indicate that the product meets or exceeds user expectations in performance, durability, and features.
- Real-World Feedback: Reviews contain real-world experiences from users who have utilized the oscilloscope in various scenarios. This firsthand feedback can highlight strengths and weaknesses that may not be apparent in product descriptions or specifications.
- Comparative Analysis: User ratings allow potential buyers to compare different models or brands effectively. By examining ratings and reviews side by side, consumers can make informed decisions based on the performance metrics that matter most to them.
- Trust and Credibility: Products with a higher number of positive reviews often build credibility and trust among potential buyers. Customers tend to prefer products that have been vetted by others, which can lead to increased confidence in their purchase decision.
- Influence of Negative Reviews: Negative reviews can significantly impact consumer choices by highlighting potential issues with the oscilloscope, such as reliability or ease of use. Understanding these pitfalls can help buyers avoid products that might not suit their needs.
What Is the Typical Price Range for a 4 Channel 500 MHz Oscilloscope?
A 4 channel 500 MHz oscilloscope is an electronic test instrument that enables users to observe and measure the voltage of signals over time, with a bandwidth of 500 MHz and the capability to display four different signal channels simultaneously. This allows for detailed analysis of complex electronic signals, which is crucial in various fields such as engineering, telecommunications, and electronics design.
According to the National Instruments website, oscilloscopes are essential tools for engineers and technicians to visualize electrical signals in real-time, helping to diagnose issues or validate design concepts (National Instruments, 2023). The price range for a 4 channel 500 MHz oscilloscope typically falls between $1,500 and $10,000, depending on the brand, features, and additional capabilities such as advanced triggering options, memory depth, and connectivity options.
Key aspects of a 4 channel 500 MHz oscilloscope include its sampling rate, which can significantly influence the accuracy of signal representation, and its memory depth, which determines how long signals can be captured. A higher sampling rate allows for better resolution of fast transients, while adequate memory depth is necessary for capturing long-duration signals without losing detail. Additionally, many modern oscilloscopes feature digital signal processing capabilities, enabling enhanced analysis and visualization, such as FFT (Fast Fourier Transform) for frequency domain analysis.
The relevance of 4 channel 500 MHz oscilloscopes extends across various applications, including debugging and validating complex embedded systems, automotive electronics, and RF (radio frequency) circuit design. With the increasing complexity of electronic devices, engineers require tools that can accurately capture and analyze multiple signals simultaneously, making these oscilloscopes invaluable in both research and development environments.
The benefits of using a high-performance 4 channel oscilloscope include improved productivity through simultaneous analysis of multiple signals, enhanced troubleshooting capabilities, and the ability to visualize interactions between different circuit components. Furthermore, many models offer user-friendly interfaces and advanced measurement features that simplify the process of signal analysis, allowing engineers to focus on design rather than getting bogged down by equipment limitations.
Best practices for selecting a 4 channel 500 MHz oscilloscope involve evaluating the specific needs of the intended application, such as required measurement accuracy, signal types, and necessary additional features. It’s also advisable to consider the manufacturer’s reputation and customer support, as well as potential future upgrades that may enhance the instrument’s capabilities. Additionally, the option of purchasing refurbished or used models can provide cost savings without sacrificing quality.
Which Brands Are Leaders in the 4 Channel 500 MHz Oscilloscope Market?
The leading brands in the 4 channel 500 MHz oscilloscope market are:
- Tektronix: Renowned for high-performance oscilloscopes, Tektronix offers models like the MDO3000 series that provide exceptional bandwidth and advanced analysis features.
- Keysight Technologies: Known for innovation, Keysight’s Infiniium series combines high speed with deep memory and is suitable for both basic and complex applications.
- Rohde & Schwarz: This brand is recognized for its robust build quality and precise measurement capabilities, with oscilloscopes like the RTO series delivering fast sampling rates and extensive analysis tools.
- Siglent Technologies: Offering cost-effective solutions, Siglent’s SDS2000X series provides a good balance of performance and features, making it a popular choice among engineers.
Tektronix: With a legacy in test and measurement, Tektronix oscilloscopes are often the go-to for professionals needing reliability and precision. The MDO3000 series, for instance, integrates a spectrum analyzer alongside traditional oscilloscope functions, allowing for versatile signal analysis, which is crucial in complex environments.
Keysight Technologies: Keysight’s Infiniium oscilloscopes are celebrated for their advanced technology and user-friendly interfaces. They offer deep memory capabilities, enabling the capture of long signal records, which is essential for debugging complex designs where signal integrity is a concern.
Rohde & Schwarz: This brand emphasizes high-quality engineering, resulting in oscilloscopes that excel in performance and reliability. The RTO series, for example, features high bandwidth and real-time analysis capabilities, making them ideal for applications in communications and automotive sectors.
Siglent Technologies: Siglent is gaining traction in the market by providing affordable oscilloscopes without compromising essential features. The SDS2000X series includes a high sampling rate and multiple trigger modes, making it suitable for a variety of educational and industrial applications while ensuring users get excellent value for their investment.
How Does a 4 Channel 500 MHz Oscilloscope Compare with Dual Channel Models?
| Aspect | 4 Channel 500 MHz | Dual Channel |
|---|---|---|
| Channel Count | Offers four channels for simultaneous signal analysis. | Typically provides two channels, suitable for basic analysis. |
| Bandwidth | 500 MHz bandwidth allows for high-speed signal capture. | Usually ranges from 100 MHz to 300 MHz, limiting high-frequency analysis. |
| Price | Generally more expensive due to advanced capabilities. | More affordable, making them accessible for beginners. |
| Use Case | Ideal for complex applications requiring multiple signals. | Best for simple tasks and educational purposes. |
| Sample Rate | Higher sample rates allow for more detailed waveform representation. | Lower sample rates may lead to less accurate signal representation. |
| Memory Depth | Often features larger memory depth for capturing long-duration signals. | Usually has lesser memory depth, limiting captured signal length. |
| Display Type | May have advanced display options such as touchscreens and color displays. | Typically features basic displays without advanced options. |
| Portability | Often heavier and less portable due to more features. | Generally more compact and easier to transport. |
| Typical Applications | Used in fields like telecommunications, electronics design, and automotive diagnostics. | Commonly used in educational settings and basic lab work. |
